FNIRSI® DSO-TC3 3-IN-1 Handheld Digital Oscilloscopes Signal Generator Transistor Tester
$43.99
Out of stock

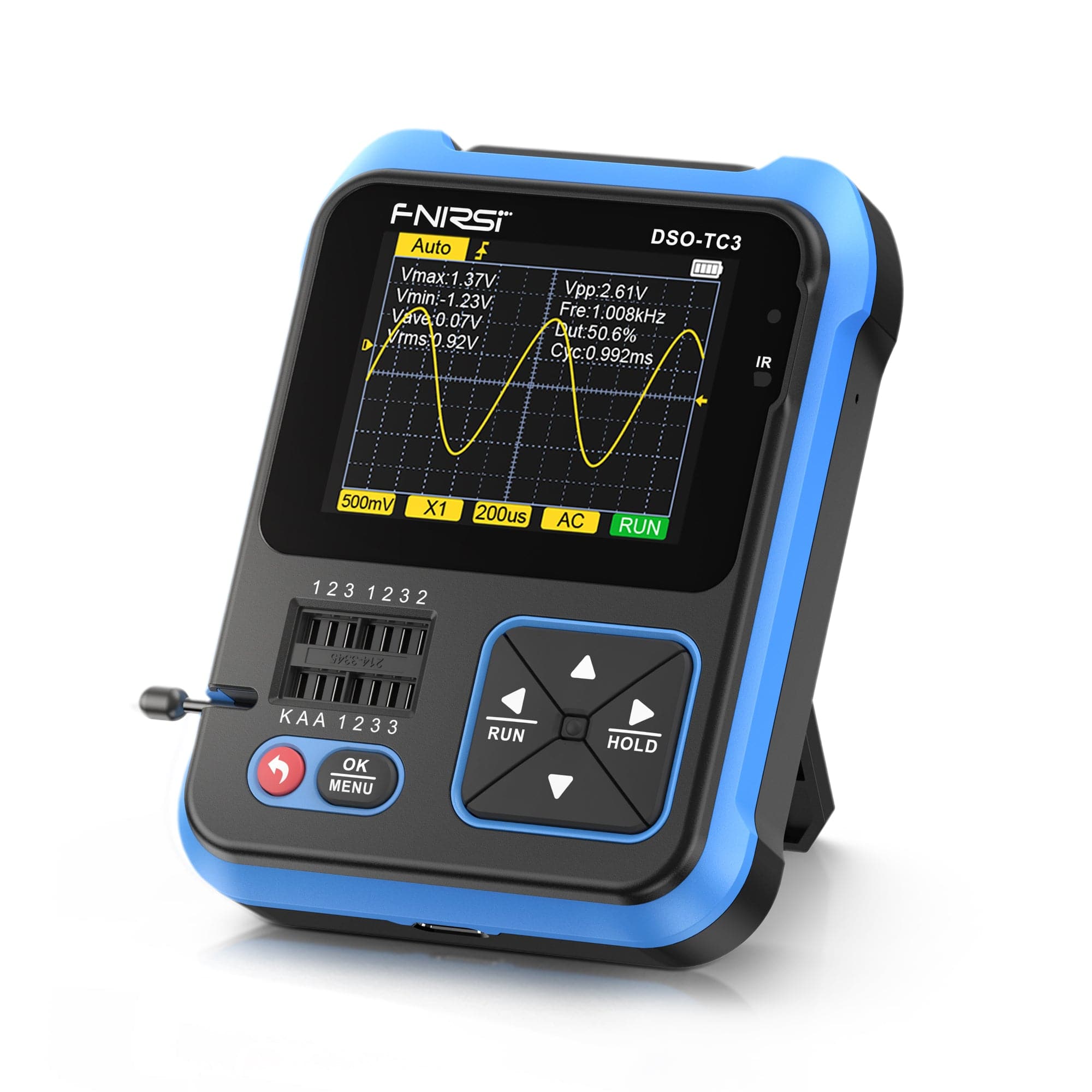

FNIRSI DSO-TC3 combines a digital Electronic measuring instrument, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.
FNIRSI DSO-TC3 is an upgraded version of DSO-TC2. On the basis of DSO-TC2, it has upgraded capacitance ESR detection, function signal generator output, Electronic measuring instrument bandwidth and sampling rate improvement, input voltage and diode detection range increase and so on. The improvement in performance and function of DSO-TC3 makes the device more stable and accurate in the detection process.
Features
- 3-IN-1 Integration: digital storage oscilloscope, component tester, signal generator for beginners, hobbyist.
- Fnirsi handheld oscilloscope: Performance: 10MS/s sampling, 500kHz bandwidth.
- Large TFT Display: Clear visualization.
- Rechargeable Battery: Portable convenience.
- Trigger Functions: Single, Normal, Automatic.
- Transistor Testing: NPN, PNP, FET, diodes, in circuit transistor tester,more.
- Component Analysis: Pin definition, NEC protocol.
- MOS Test Mode: Identifies various transistor types.
- Other Modes: Continuity, voltage, PWM, temperature sensors.
- Waveform Generator: Sine, square, pulse, triangle, ramp, DC.
Basic Parameters
- Display screen: 2.4 inch TFT color screen, LED backlight
- Supply voltage: Rechargeable lithium battery
- Charging specififications: USB Type-C, +5V
- Product volume: 79*103*31mm
- Bracket speciffications: All-in-one foldable stand
Specification
Digital Oscilloscope:
Real-time sample rate
10Msa/s
Analog Bandwidth
500Khz
Input resistance
1MΩ
Coupling method
AC/DC
Test voltage range
400V
Vertical Sensitivity (x1)
10mV-10V
Horizontal time base range
1us-10s
Trigger mode
Auto / Normal / Single
Trigger type
Rising edge / Falling edge
Waveform Freeze
Yes
Automatic measurement
Yes
Function Signal Generator:
Sine wave
1-100KHz/0-3.3V/50%
Square wave
1-100KHz/3.3V/50%
Pulse wave
1-100KHz/3.3V/0-100%
Triangle wave
1-100KHz/0-3.3V/50%
Ramp
1-100KHz/0-3.3V/0-100%
DC
0-3.3V
Transistor Tester & Tools:
Triodes
β is greater than 10 and less than 600
Diodes
Forward voltage drop <4.5V
Reglulated diode
0.01~4.5V (1-2-3 test area)
0.01~32V (K-A-A test area)
0.01~32V (K-A-A test area)
MOSFET
JFET，IGBT，MOSFET
SCRs
TRIAC
TRIAC
Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor
25pF~100mF
Resistor
0.01Ω~50MΩ
Inductor
10uH~1000uH
Battery
0.1~4.5V
Input voltage
0~40V
DS18B20
0-85℃
DHT1
0-60℃/5-95%
Infrared remote decoding
NEC protocol infrared code
NOTE:
①Ices, Iceo, Uf are only displayed when they are valid.
② Junction capacitance and reverse leakage current are only displayed when they are valid.
③The turn-on or turn-off voltage of the FET must be less than 5V.
④ Displayed only when there is a protection of diode.
⑤Vloss is only displayed when it is valid.
⑥Two-legged components and measure the inductance when the resistance is less than 2.1kΩ.
